CS1000 Series
Automatic Sliding Door
AUTOMATIC SLIDING DOOR
TRONCO CS1000 automatic sliding door system is developed by ourselves and produced by consumer demand. TRONCO has accumulated more than 10 years of automatic door experience in development, manufacturing and production. TRONCO CS1000 series pass through multi-national safety standards and market in Europe and America for many years.
TRONCO CS1000 door action is setting by microcomputer controller and can support access control system. The controller included a variety of emergency setting to the users’ security checks. CS1000 using a DC brushless DC motor and can use more than one million times, the opening and closing operation accurate and correct. It is quiet, energy saving and environmental friendly. With the low resistance transmission, the door can operate more gracefully and smoothly. TRONCO CS1000 series turn all the components into modular and have LED display to show status when it malfunction. It is more easy and convenient for you on installation and maintenance to detect it visually.

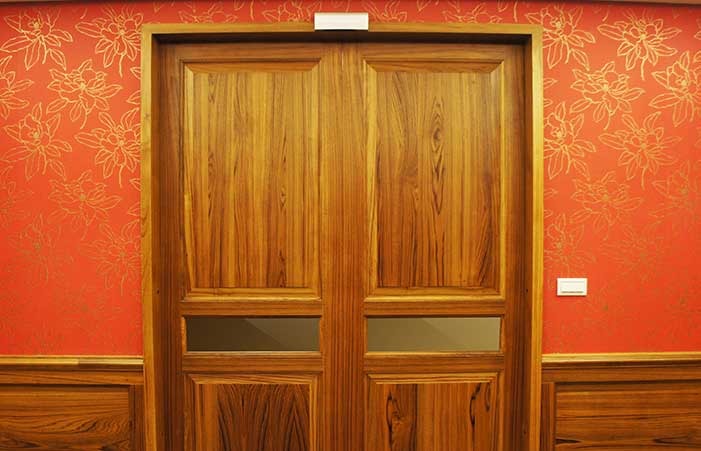

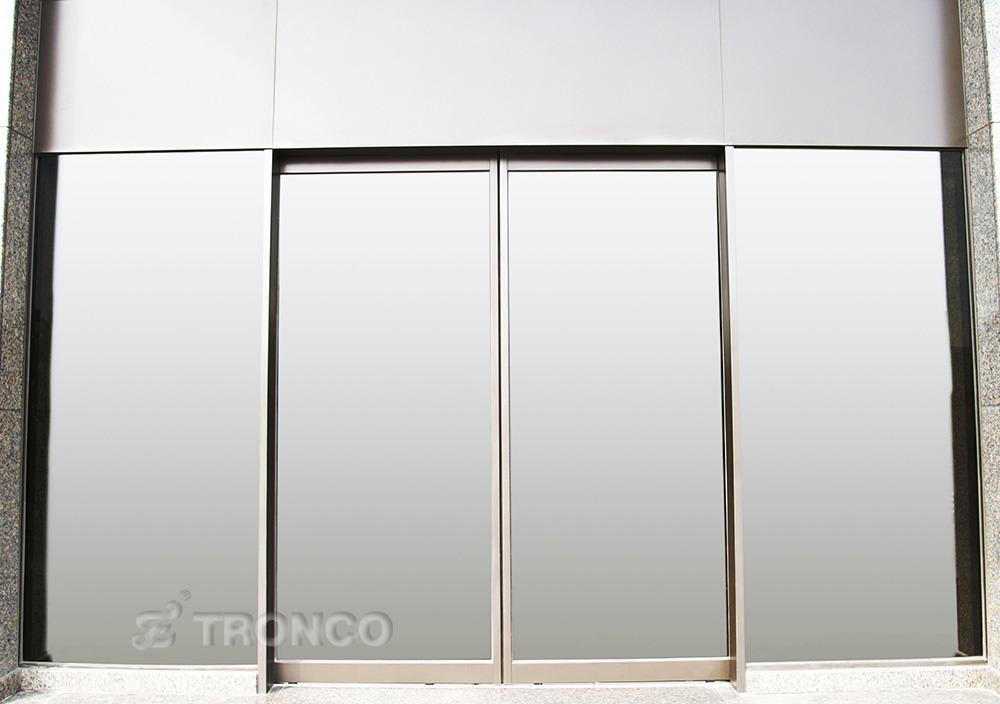

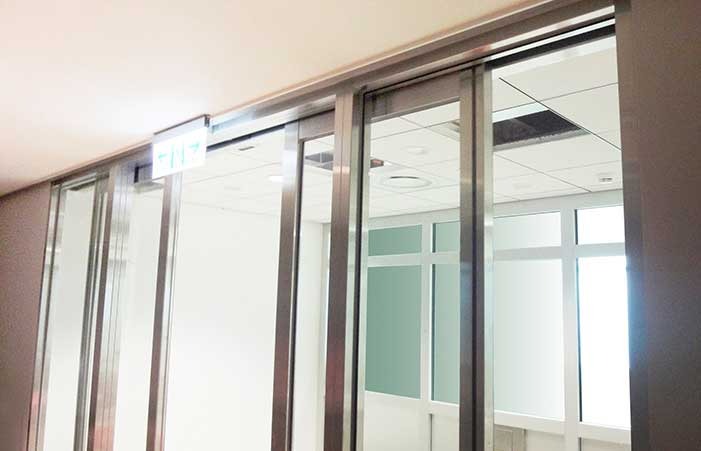

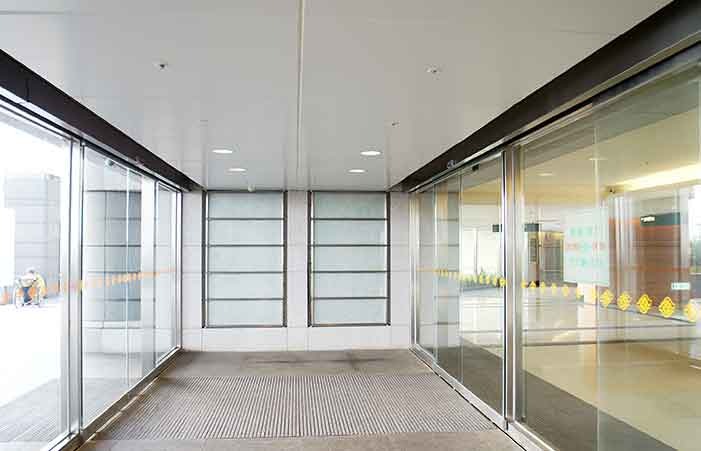

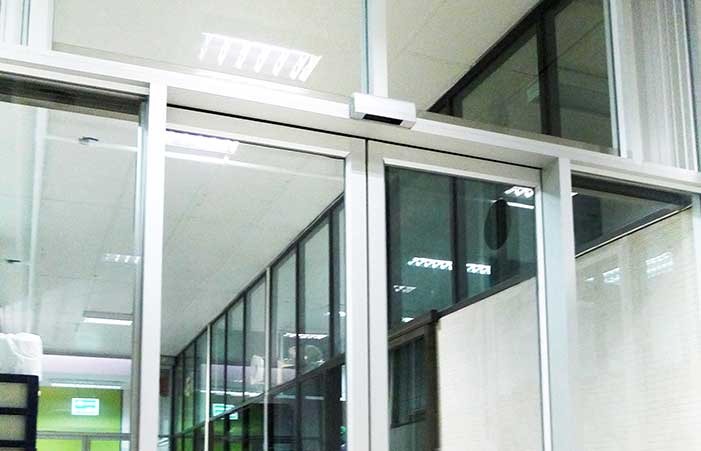

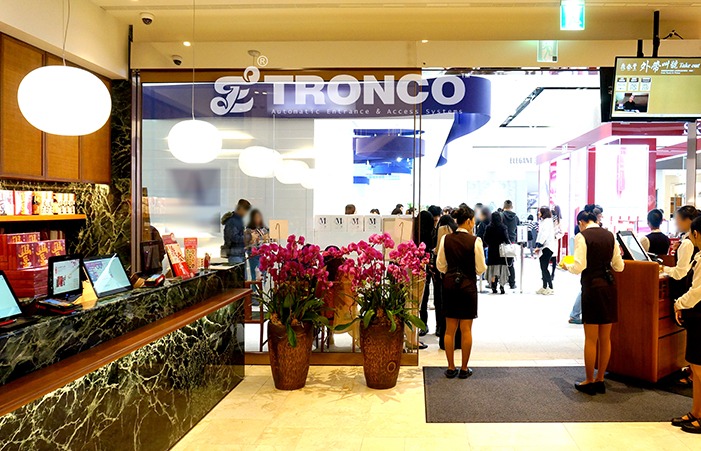

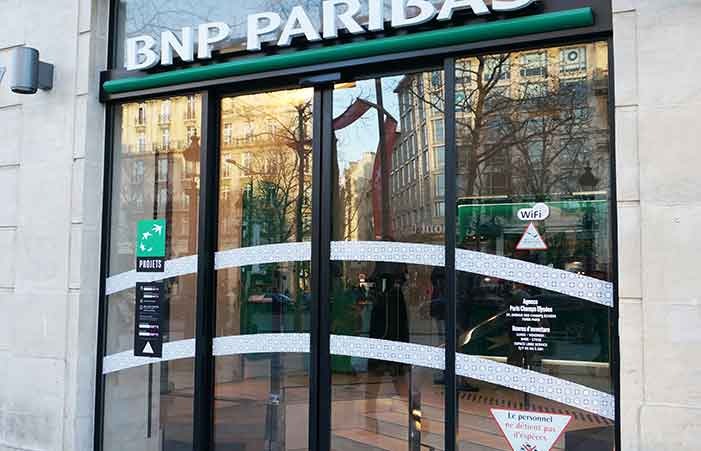

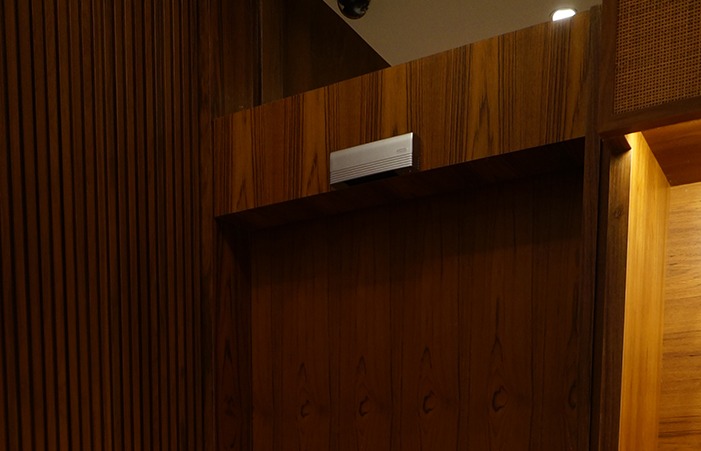

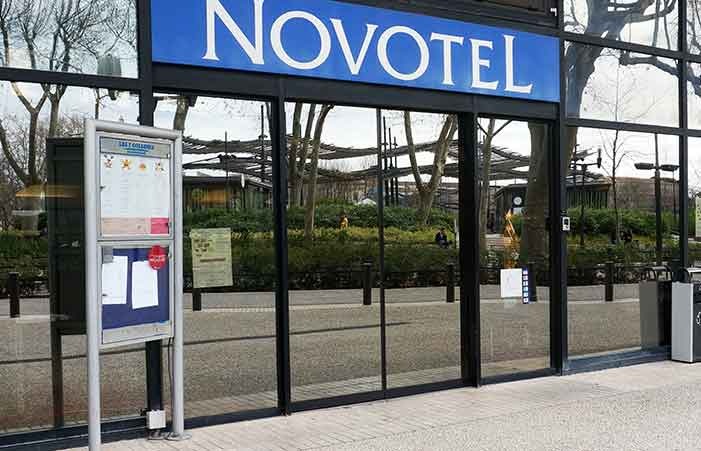

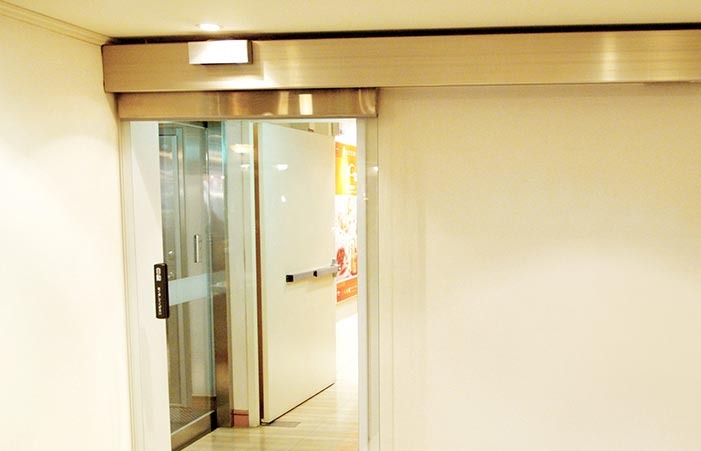

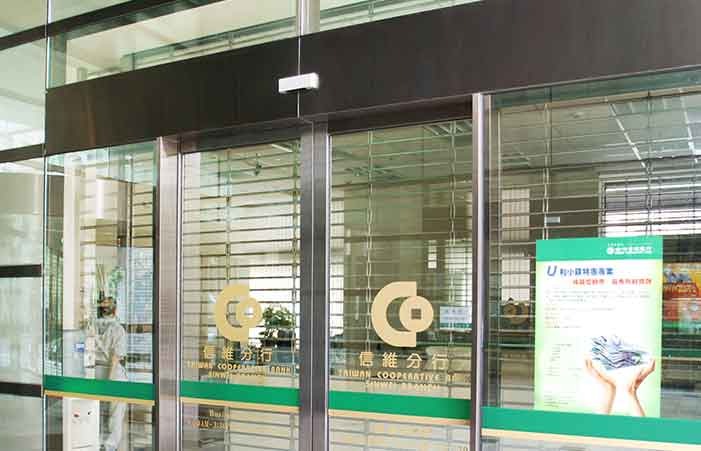

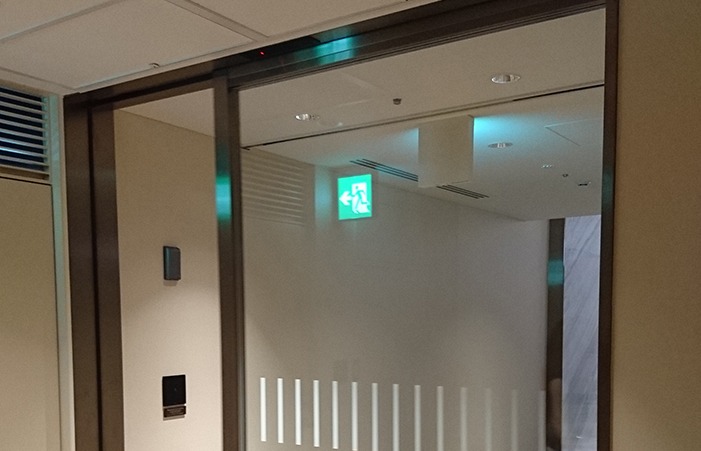

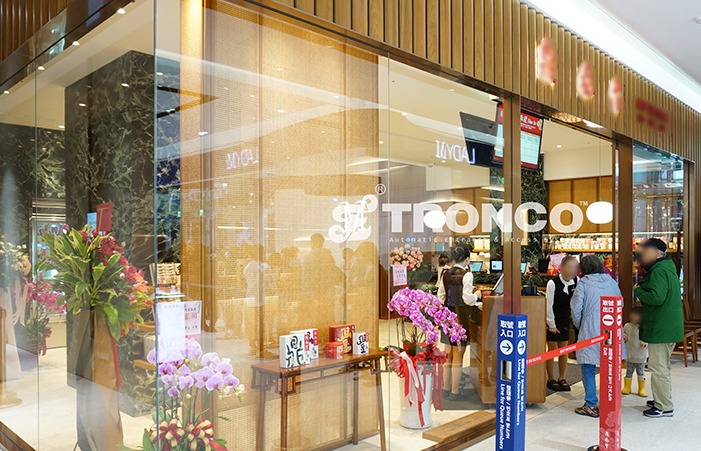

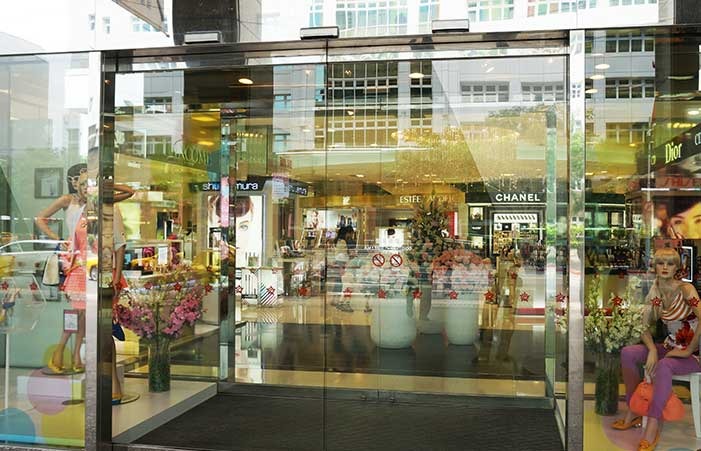

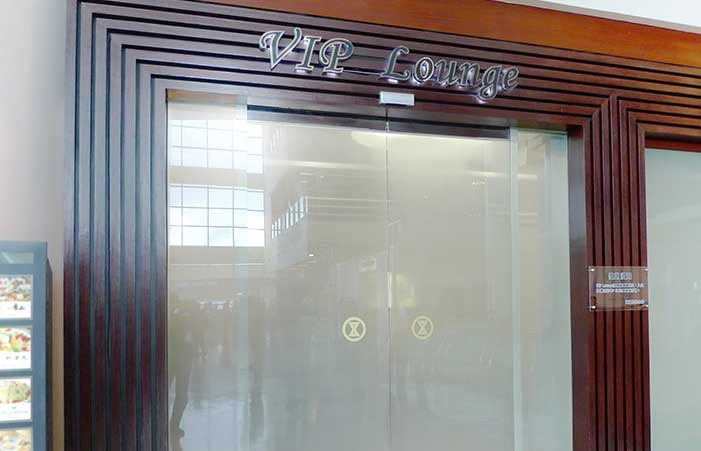

TRONCO CS1000 automatic sliding door system has been applied to garage gates, hospital radiation-prevent doors, warehouse door, accessible space, security doors, commercial buildings, stores, ships ... and other places. It earns good comment from all the users.
CORE ADVANTAGES

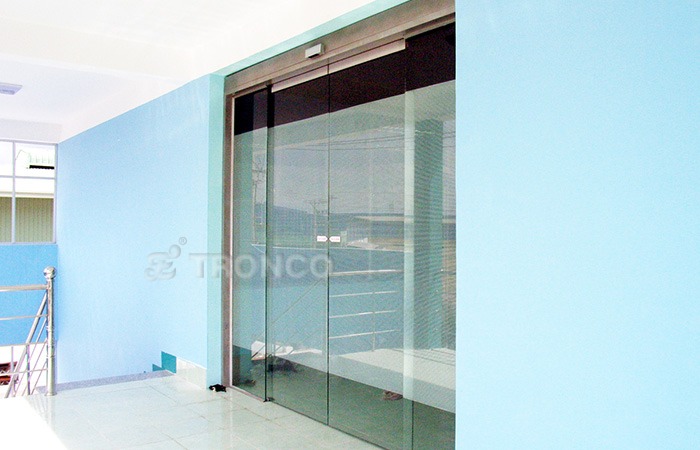

Stable Intelligent Multifunctional System with Excellent Expandability and Compatibility
The CS800 intelligent microprocessor controller features self-diagnosis, protection, intelligent analysis, and automatic adjustment functions. It automatically determines the optimal operating mode to ensure stable system performance and reliable operation. In emergency situations, the system can also perform effectively to assist with safe evacuation.
In addition, the CS800 offers outstanding flexibility and expandability to meet a wide range of application requirements. Users can integrate various sensors, electric locks, access control systems, and other peripheral devices according to their specific needs, providing excellent compatibility and expansion capability.
All system components are designed with a modular architecture, while the controller is equipped with an LED display that allows users to visually monitor system status, making installation, inspection, and maintenance more convenient. From functional design and application versatility to installation efficiency, every aspect has been developed with the user in mind.

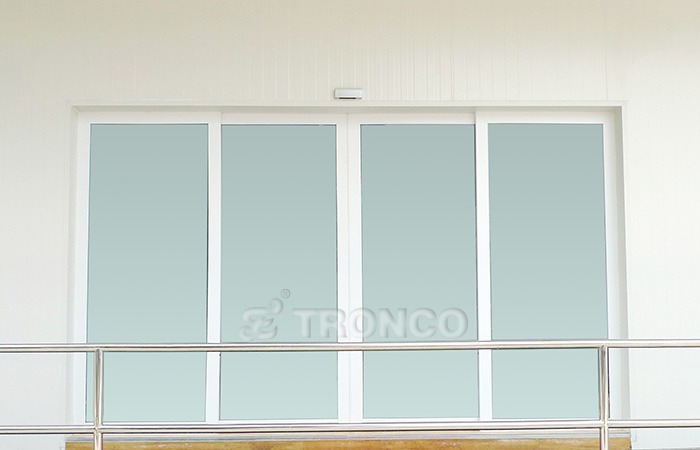

Energy Efficient and Environmentally Friendly
The system is powered by TRONCO's high-efficiency DC brushless motor. Its specially designed electronic circuit minimizes unnecessary energy loss during power conversion, significantly reducing power consumption while maintaining excellent operating performance.
The monthly electricity cost is approximately equivalent to the price of a single bottled beverage, making energy-saving, environmentally friendly, and convenient operation an affordable reality.
Internationally Certified for Quality and Safety
In addition to providing an outstanding user experience, TRONCO is committed to ensuring the highest level of safety. The system is certified under TÜV Rheinland Germany's ISO 9001:2008 Quality Management System and carries CE certification. Combined with more than 25 years of experience in automatic door manufacturing and installation, TRONCO delivers reliable, high-quality products with proven safety and performance.

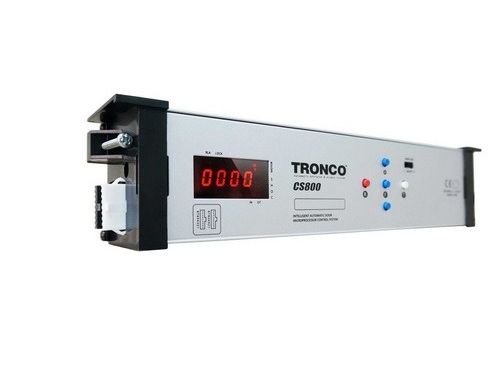

Intelligent Microprocessor Controller
Supports a universal AC input voltage of 90V–240V and provides DC 12V and DC 24V outputs for powering peripheral devices. Built-in self-protection, self-diagnosis, intelligent analysis, and logical processing functions automatically optimize the operating mode to maximize system stability and service life. During operation, the controller displays the door leaf status and corresponding system signals in real time via the LED display.

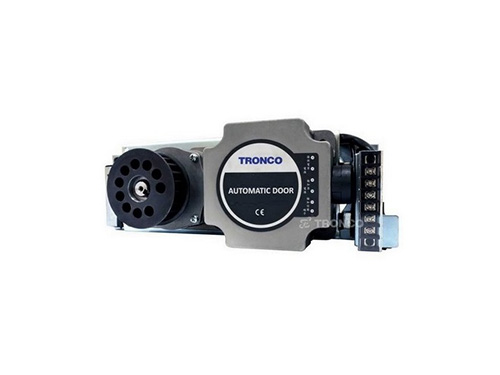

DC Brushless Servo Motor
The high-efficiency motor utilizes a specially designed electronic circuit to minimize heat generation, allowing continuous operation without overheating. Combined with a toothed synchronous timing belt, it provides precise, slip-free transmission while incorporating overload protection and automatic recovery functions.
Multifunction Expansion Module
The system provides multiple signal interfaces, including DC 12V / 24V power supply, door opening signal, safety beam, emergency opening, emergency stop, close-and-lock control, and electric lock power supply. The centralized modular wiring design enables faster installation, simplified cable management, and more efficient maintenance.
Aluminum Alloy Housing
- Manufactured from high-strength integrated aluminum alloy, providing outstanding strength, wear resistance, and durability.
- Reinforced housing structure with load-bearing testing and patented design.
- Unique V-shaped guide groove design securely holds housing screws in place to prevent slipping during installation.
- Compatible with housing systems used by other automatic door brands available on the market.

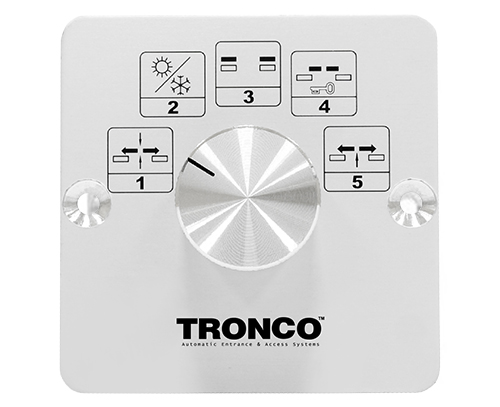

CS-PS52 / CS-PS53 Mode Selector (Optional)
Elegant five-position rotary selector. Dimensions: 70 mm × 70 mm
Normal Mode
Allows bidirectional access for everyday operation.
Partial Open Mode
The door opens to the preset partial opening width.
Hold Open Mode
Keeps the door in the fully open position.
Close & Lock Mode
Immediately closes and locks the door.
One-way Traffic Mode
Allows access from one direction only through sensor activation.
The CS1000 Series is designed from the user's perspective in every aspect, including functional design, application features, and installation convenience.
SPECIFICATIONS
// Specifications
CS1000-L1
CS1000-L2
CS1000-L3
CS1000-L4
CS1000-L5
Door Leaf Weight
100 kg × 1 (Single Leaf) / 90 kg × 2 (Double Leaves)
Door Dimensions
(Max.) W: 5000 mm ↓, H: 3500 mm ↓
(Min.) W: 450 mm ↑, H: According to actual design
(Min.) W: 450 mm ↑, H: According to actual design
*Please contact the manufacturer for special dimensions.
Travel Distance
400–12000 mm (Entrance width can be doubled for bi-parting doors.)
Opening / Closing Speed
150–650 mm/sec (Adjustable)
Closing Delay
1–60 sec (Adjustable)
Input Power Supply
AC 90–250 V (50/60 Hz)
Power Consumption
75 W / 100 W (Peak)
DC Output
DC 12 V / 1.5 A, DC 24 V / 1 A
Protection Rating / Operating Temperature
IP20 / -20°C to +45°C
Housing Dimensions
Height 155 mm × Depth 112 mm
Door Leaf Weight
200 kg × 1 / 180 kg × 2
Door Dimensions
(Max.) W: 5000 mm ↓, H: 3500 mm ↓
(Min.) W: 450 mm ↑, H: According to actual design
(Min.) W: 450 mm ↑, H: According to actual design
*Please contact the manufacturer for special dimensions.
Travel Distance
400–12000 mm
Opening / Closing Speed
150–650 mm/sec (Adjustable)
Closing Delay
1–60 sec (Adjustable)
Input Power Supply
AC 90–250 V (50/60 Hz)
Power Consumption
75 W / 100 W (Peak)
DC Output
DC 12 V / 1.5 A, DC 24 V / 1 A
Protection Rating / Operating Temperature
IP20 / -20°C to +45°C
Housing Dimensions
Height 155 mm × Depth 112 mm
Door Leaf Weight
350 kg × 1 / 300 kg × 2
Door Dimensions
(Max.) W: 5000 mm ↓, H: 3500 mm ↓
(Min.) W: 450 mm ↑, H: According to actual design
(Min.) W: 450 mm ↑, H: According to actual design
Travel Distance
400–12000 mm
Opening / Closing Speed
150–450 mm/sec (Adjustable)
Closing Delay
1–60 sec (Adjustable)
Input Power Supply
AC 90–250 V (50/60 Hz)
Power Consumption
250 W
DC Output
DC 12 V / 1.5 A, DC 24 V / 1 A
Protection Rating / Operating Temperature
IP20 / -20°C to +45°C
Housing Dimensions
Height 220 mm × Depth 112 mm
Door Leaf Weight
600 kg × 1 / 500 kg × 2
Door Dimensions
Please consult the manufacturer for door dimensions before production and installation.
Travel Distance
400–12000 mm
Opening / Closing Speed
150–450 mm/sec (Adjustable)
Closing Delay
1–60 sec (Adjustable)
Input Power Supply
AC 90–250 V (50/60 Hz)
Power Consumption
250 W
DC Output
DC 12 V / 1.5 A, DC 24 V / 1 A
Protection Rating / Operating Temperature
IP20 / -20°C to +45°C
Housing Dimensions
Height 220 mm × Depth 112 mm
Door Leaf Weight
990 kg × 1 / 750 kg × 2
Door Dimensions
Please consult the manufacturer for door dimensions before production and installation.
Travel Distance
400–12000 mm
Opening / Closing Speed
150–450 mm/sec (Adjustable)
Closing Delay
1–60 sec (Adjustable)
Input Power Supply
AC 90–250 V (50/60 Hz)
Power Consumption
250 W
DC Output
DC 12 V / 1.5 A, DC 24 V / 1 A
Protection Rating / Operating Temperature
IP20 / -20°C to +45°C
Housing Dimensions
Height 220 mm × Depth 112 mm
